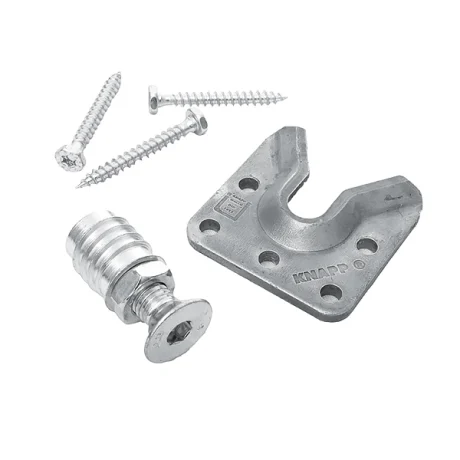

WALCO V60 EH Retaining Screw Prefab Wall Connector

The WALCO V60 EH Retaining Screw Prefab Wall Connector is a concealed connection system designed for accurate and efficient joining of prefabricated timber walls, CLT wall panels, and light-frame building elements. The EH version uses an adjustable retaining screw, allowing the installer to fine-tune the screw position before engaging it into the compact hot-dip galvanized V-shaped bracket.

This adjustability helps correct small layout deviations and ensures smooth seating during assembly. Once aligned, the wall element slides into the bracket in a dovetail-like motion, forming a stable connection capable of transferring wind loads perpendicular to the insertion direction and providing reliable tension resistance.

Key Features

• Concealed connector for prefabricated timber, CLT, and panelized wall systems

• EH version features an adjustable retaining screw for precise control during alignment

• Compact V60 bracket designed for smaller wall elements and light-frame applications

• Transfers loads perpendicular to insertion direction (wind loads) and in tension

• Allows timber-to-timber, timber-to-steel, and timber-to-concrete connections

• Compatible with intermediate layers such as OSB or fiberboard

• No recess required for 13 mm or 15 mm sheathing

• Enables complete workshop prefabrication for rapid on-site assembly

• Stable connection from the first installed corner

• Concealed hardware maintains clean architectural finishes

• ETA certified for structural timber applications, including hardwood

• Prefabricated timber wall modules

• CLT panel joints

• Panelized modular construction

• Exterior wall junctions exposed to wind loads

• Interior walls and finishing wall elements

• Timber-to-steel and timber-to-concrete interface connections

• Type: WALCO V60 EH Retaining Screw Wall Connector

• Load Capacity (F₂,Rk): 5.1 kN (insertion direction; C24 softwood; per ETA-10/0189 with original KNAPP SK screws)

• Material:

  • Hot-dip galvanized steel bracket

  • EH adjustable retaining screw

• Minimum Timber Width: 60 mm

• Compatible Building Materials:

  • Solid timber

  • CLT, LVL, glulam

  • Steel

  • Concrete

• Sheathing Compatibility: Bracket installs without recessing for 13 mm or 15 mm cladding

• ETA Compliance: Load values valid only with original KNAPP screws

• Install the Adjustable Retaining Screw:

  • Pre-drill as required.

  • Fasten the EH screw into the timber element.

  • Adjust screw alignment to match bracket geometry.

• Install the V60 Bracket:

  • Mount the bracket using approved screws.

  • Confirm horizontal and vertical alignment per layout.

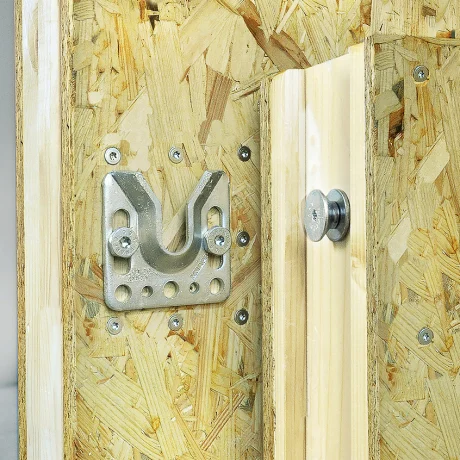

• Engage the Connection:

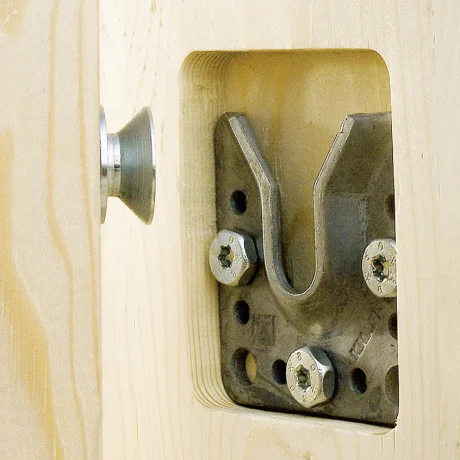

  • Align the adjustable retaining screw with the V-shaped receiver.

  • Slide the wall panel into place until the screw fully engages the bracket.

• Fine-Tune Alignment:

  • Use the adjustment capability of the EH screw to correct minor tolerances.

• Finalize Assembly:

  • Ensure the connection is fully seated and stable.

  • No additional fastening is required after engagement.
