WALCO V60 KS Screw & Washer Prefab Wall Connector

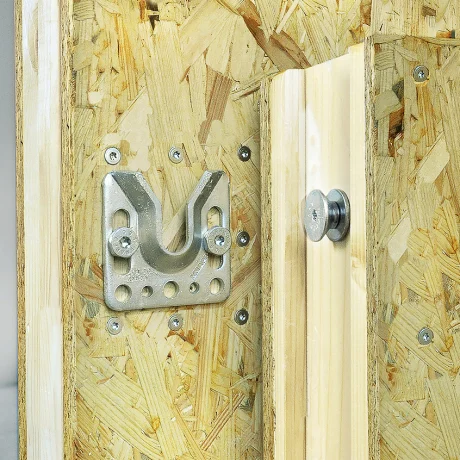

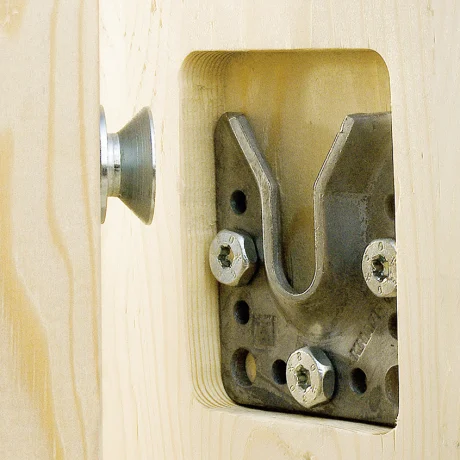

The WALCO V60 KS Screw & Washer Prefab Wall Connector is a concealed connection system designed for joining prefabricated timber walls, CLT wall panels, and light-frame building components. This KS version uses a collar screw with an integrated washer, which engages into a hot-dip galvanized V-shaped receiving bracket.

The compact V60 format is optimized for smaller wall elements while maintaining high installation accuracy, fast engagement, and reliable transfer of wind and tension loads. The system is suitable for full workshop prefabrication and enables rapid jobsite assembly without visible hardware once installed.

Key Features

• Concealed connector for prefabricated timber and CLT wall assemblies

• KS version uses a collar screw with integrated washer for secure engagement

• V-shaped receiving bracket allows smooth slide-in assembly

• Supports loads perpendicular to insertion direction (wind loads) and in tension

• Works with timber-to-timber, timber-to-steel, and timber-to-concrete wall interfaces

• No recessing required when combined with 13 mm or 15 mm sheathing

• Compatible with intermediate materials such as OSB or fiberboard

• Immediately stabilizes the wall corner during installation

• Enables complete prefabrication for faster assembly on site

• Concealed hardware for clean architectural finishes

• ETA certified for structural applications, including hardwood

• Prefabricated timber wall systems

• CLT wall panels and small vertical junctions

• Modular and panelized construction

• Timber-to-steel and timber-to-concrete transitions

• Interior partitions and secondary wall elements

• Residential and small commercial timber construction

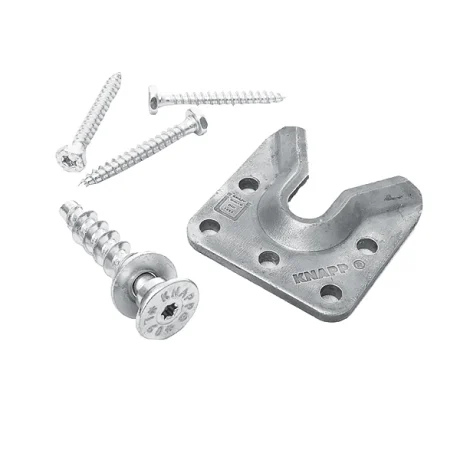

• Type: WALCO V60 KS Screw & Washer Wall Connector

• Load Capacity (F₂,Rk): 5.9 kN (insertion direction; C24 softwood; per ETA-10/0189 with original KNAPP SK screws)

• Material:

  • Hot-dip galvanized steel bracket

  • Collar screw with integrated washer

• Minimum Timber Width: 60 mm

• Compatible Building Materials:

  • Solid timber

  • CLT, glulam, LVL

  • Steel

  • Concrete

• Sheathing Compatibility: No bracket recess required for 13 mm or 15 mm cladding

• ETA Compliance: Load ratings valid only with original KNAPP SK screws

1. Install the KS Collar Screw:

   • Pre-drill if necessary.

   • Fasten the collar screw with integrated washer directly into the timber element.

2. Mount the Bracket:

   • Position the V60 bracket based on layout marks.

   • Secure the bracket using approved screws in the designated locations.

3. Engage the Joint:

   • Align the collar screw with the V-shaped guide.

   • Slide the wall element into the bracket until fully seated.

4. Verify Positioning:

   • Check that the connection is completely engaged and stable.

5. No Additional Fasteners Required:

   • Once engaged, the connection provides immediate structural stability.
