WALCO V60 VK Screw & Collar Bolt Prefab Wall Connector

The WALCO V60 VK Screw & Collar Bolt Prefab Wall Connector is a concealed wall-to-wall connection system engineered for joining prefabricated timber walls, CLT wall elements, and light timber frame panels. The VK version uses a screwed collar bolt that engages into a compact hot-dip galvanized V-shaped receiving bracket, creating a secure connection that stabilizes the structure from the first wall corner.

The system is designed for workshop prefabrication and fast on-site assembly. Once the collar bolt is fixed into the panel, the wall element is simply slid into the bracket. The V-shaped geometry guides the bolt into the bracket and reliably transfers loads perpendicular to the insertion direction (wind loads) and in tension, while remaining fully concealed once installed.

Key Features

• Concealed connection for prefabricated timber and CLT wall assemblies

• VK version uses a screwed collar bolt for a secure, repeatable engagement

• V-shaped bracket simplifies installation and ensures accurate alignment

• Supports wind loads and tension loads in accordance with ETA-10/0189

• Suitable for timber-to-timber, timber-to-steel, and timber-to-concrete connections

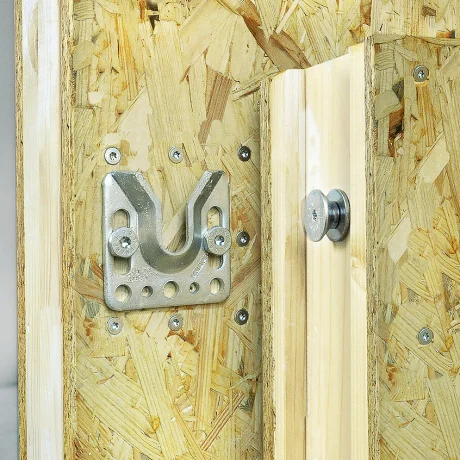

• Compatible with intermediate layers such as OSB or fiberboard

• Does not require recessing the bracket when used with 13 mm or 15 mm sheathing

• Stable connection immediately upon engagement

• Enables full prefabrication in the workshop for faster installation on site

• Concealed hardware for clean architectural detailing

• ETA certified for structural applications, including hardwood

• Prefabricated timber wall systems

• CLT wall panel connections

• Modular and panelized construction

• Exterior and interior wall junctions

• Timber-to-steel or timber-to-concrete transitions

• Residential and small commercial timber projects

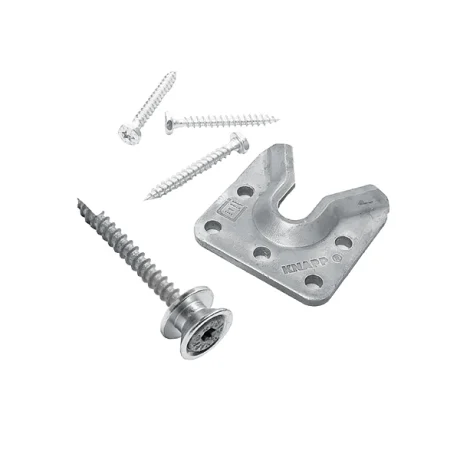

• Type: WALCO V60 VK Screw & Collar Bolt Wall Connector

• Load Capacity (F₂,Rk): 3.9 kN (insertion direction; C24 softwood; per ETA-10/0189 with KNAPP SK screws)

• Material:

  • Hot-dip galvanized steel bracket

  • Steel collar bolt with countersunk screw

• Minimum Timber Width: 60 mm

• Compatible Materials:

  • Solid timber, CLT, LVL, glulam

  • Steel

  • Concrete

• Sheathing Compatibility: No bracket recess required for 13 mm or 15 mm cladding

• ETA Compliance: Load values apply only when original KNAPP screws are used

• Install the Collar Bolt:

  • Pre-drill as required.

  • Fix the collar bolt and countersunk screw directly into the timber element.

• Install the Bracket:

  • Position the V60 bracket according to the layout plan.

  • Fasten using approved screws.

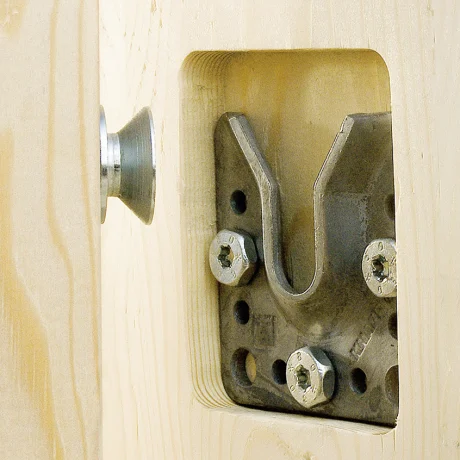

• Engage the Connection:

  • Align the collar bolt with the V-shaped guide.

  • Slide the wall element into the bracket until the bolt fully engages.

• Check Alignment:

  • Confirm that the mating surfaces are fully seated.

  • Ensure the connection is secure.

• No Additional Fastening Required:

  • Once engaged, the connector provides immediate stability.
