WALCO V80 EH Retaining Screw Prefab Wall Connector

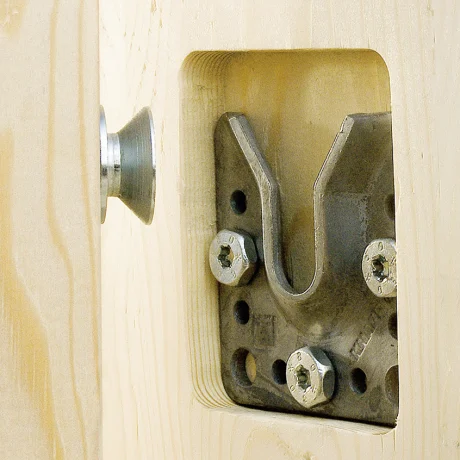

The WALCO V80 EH Retaining Screw Prefab Wall Connector is a concealed wall-to-wall connection designed for joining prefabricated timber walls, CLT wall panels, and main beam interfaces with high accuracy. This EH version uses an adjustable retaining screw, allowing the installer to fine-tune the screw position before final engagement with the hot-dip galvanized V-shaped bracket.

The adjustable screw provides precise control during alignment, making the EH version especially useful when compensating for small variations in panel layout or sheathing thickness. Once aligned, the wall panel slides into the bracket in a dovetail-like motion, forming a stable connection capable of transferring wind loads perpendicular to the insertion direction, as well as tension forces.

Key Features

• Concealed connector for timber frame, CLT, and panelized wall assemblies

• EH version features an adjustable retaining screw for precise pre-alignment

• V-shaped receiving bracket guides the screw smoothly during installation

• Supports load transfer perpendicular to insertion direction (wind loads) and in tension

• Suitable for timber-to-timber, timber-to-steel, and timber-to-concrete connections

• No recessing required when combined with 13 mm or 15 mm sheathing

• Compatible with intermediate layers such as OSB or fiberboard

• Enables complete prefabrication of wall modules for fast jobsite assembly

• Concealed after installation for clean architectural finishes

• Stable connection from the first wall corner

• ETA certified for structural applications, including hardwood materials

• Prefabricated timber wall systems

• CLT panel connections

• Modular and panelized offsite construction

• Exterior wall junctions exposed to wind loading

• Timber-to-steel and timber-to-concrete interfaces

• Interior partitions and finish wall elements

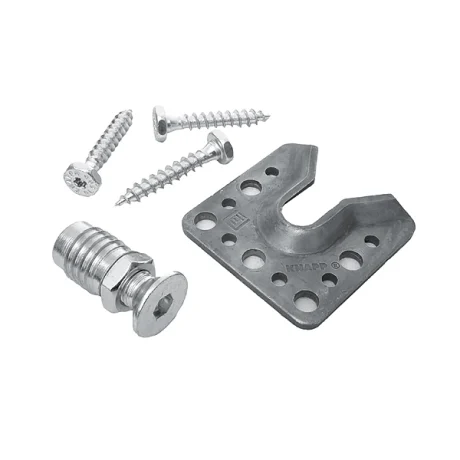

• Type: WALCO V80 EH Retaining Screw Wall Connector

• Load Capacity (F₂,Rk): 6.7 kN (insertion direction; C24 softwood; per ETA-10/0189 with KNAPP SK screws)

• Material:

  • Hot-dip galvanized steel bracket

  • EH adjustable retaining screw

• Minimum Timber Width: 80 mm

• Compatible Materials:

  • Solid timber

  • CLT, glulam, LVL

  • Steel

  • Concrete

• Sheathing Compatibility: No recess needed for 13 mm or 15 mm cladding thickness

• ETA Compliance: Load values apply only when using original KNAPP SK screws

• Install the Adjustable Retaining Screw:

  • Pre-drill if required.

  • Position and fasten the EH retaining screw into the timber element.

  • Adjust screw depth/angle as needed to align with bracket geometry.

• Install the V80 Bracket:

  • Mount the bracket with approved screws according to layout markings.

  • Confirm vertical and horizontal alignment.

• Engage the Connection:

  • Align the retaining screw with the V-shaped opening.

  • Slide the wall panel into the bracket until the screw fully engages the receiver.

• Fine Adjustment:

  • Use the adjustable screw to correct small positional tolerances.

• Finalize Assembly:

  • Verify the panel is fully seated.

  • No further fastening is required after engagement.
