WALCO V80 KS Screw & Washer Prefab Wall Connector

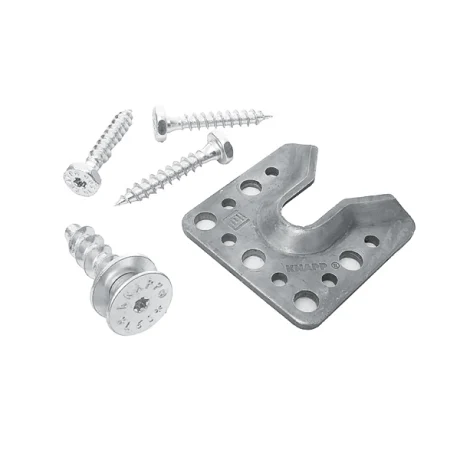

The WALCO V80 KS Screw & Washer Prefab Wall Connector is a concealed wall-to-wall connection system designed for fast, accurate assembly of prefabricated timber and CLT wall elements. This KS version uses a collar screw with an integrated washer, which engages securely into a hot-dip galvanized V-shaped receiving bracket.

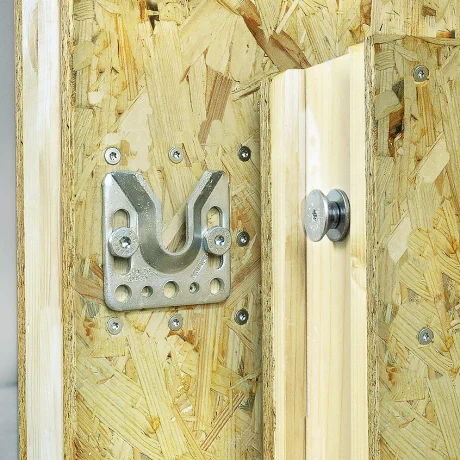

Engineered for workshop prefabrication and rapid jobsite installation, the connector allows wall elements to be joined by sliding the collar screw into the spacious V-shaped bracket. The system transfers wind loads perpendicular to the insertion direction and provides reliable tension resistance while remaining fully concealed in the finished structure.

Key Features

• Concealed connection for prefabricated timber and CLT wall panels

• KS version uses a collar screw with integrated washer for stable engagement

• Large V-shaped bracket opening ensures easy alignment during installation

• No recessing required when used with 13 mm or 15 mm sheathing

• Supports timber-to-timber, timber-to-steel, and timber-to-concrete wall interfaces

• Suitable for intermediate layers such as OSB or fiberboard

• Transfers both perpendicular (wind) loads and tension loads

• Enables complete workshop prefabrication for faster assembly on site

• Stable from the first corner, allowing fast structural stabilization

• Concealed hardware maintains clean architectural detailing

• ETA certified for structural use, including hardwood applications

• Prefabricated timber wall systems

• CLT wall joints and vertical panel connections

• Modular and panelized timber construction

• Exterior and interior wall junctions

• Timber-to-concrete and timber-to-steel transitions

• Residential and commercial timber structures

• Type: WALCO V80 KS Screw & Washer Wall Connector

• Load Capacity (F₂,Rk): 7.1 kN (insertion direction; C24 softwood; per ETA-10/0189 using original KNAPP SK screws)

• Material:

  • Hot-dip galvanized steel bracket

  • Collar screw with integrated washer

• Minimum Timber Width: 80 mm

• Compatible Materials:

  • Solid timber

  • CLT, LVL, and glulam

  • Steel

  • Concrete

• Sheathing Compatibility: Can be installed without recessing the bracket for 13 mm or 15 mm cladding

• ETA Compliance: Load values apply only when using original KNAPP screws per ETA-10/0189

• Install the Collar Screw:

  • Pre-drill if required.

  • Fasten the collar screw directly into the timber element or through an intermediate layer.

• Mount the Bracket:

  • Position the V80 bracket according to layout marks.

  • Secure it using approved screws in the designated holes.

• Engage the Connection:

  • Align the collar screw with the V-shaped opening.

  • Slide the wall panel into position until the screw fully engages the bracket.

• Final Alignment:

  • Confirm the joint is fully seated.

  • No additional fastening is needed after engagement.
