WALCO V80 VK Slotted Hole Prefab Wall Connector

The WALCO V80 VK Slotted Hole Prefab Wall Connector is a concealed, load-bearing connection system designed for fast and accurate joining of prefabricated timber walls, CLT wall panels, and main beams. This version uses the VK screwed collar bolt in combination with a slotted-hole bracket, providing enhanced installation tolerance and improved on-site adjustability.

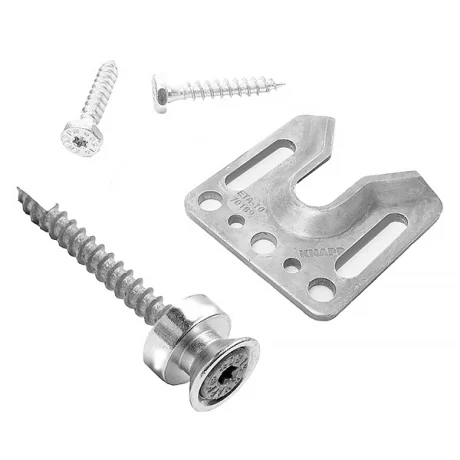

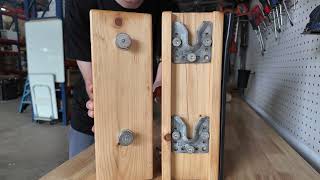

The connector set includes a hot-dip galvanized steel bracket shaped in a wide V-form to receive the collar bolt during assembly. The collar bolt is fixed directly into the timber element (with or without an interlayer). Once positioned, the wall element simply slides into the bracket in a dovetail-like engagement. The slotted-hole version allows ±15 mm height adjustment and ±2 mm width correction for on-site tolerances, producing a stable, concealed, and repeatable wall-to-wall connection.

Key Features

• Concealed load-bearing connection for prefabricated timber or CLT wall elements

• Slotted-hole bracket provides height adjustment up to 15 mm and width compensation of ±2 mm

• VK version includes a screwed collar bolt and self-tapping countersunk screw for secure attachment

• Large V-shaped opening ensures easy engagement, even in tight installation conditions

• Suitable for timber-to-timber, timber-to-steel, and timber-to-concrete connections

• Designed to carry wind loads (perpendicular to insertion direction) and tension loads

• Allows installation over intermediate layers such as sheathing or insulation boards

• Enables complete prefabrication of wall elements in the workshop

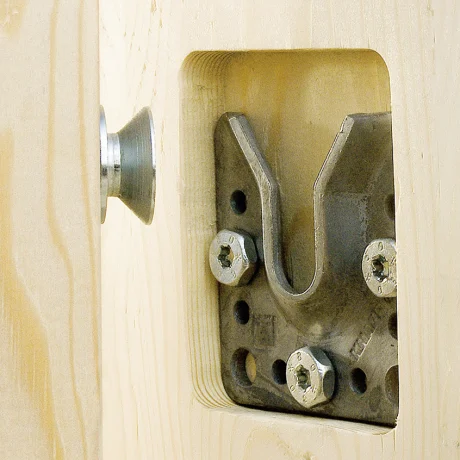

• Concealed final assembly with no visible hardware once installed

• ETA certified for structural use, including hardwood applications

• Prefabricated timber wall systems

• CLT wall and beam connections

• Modular construction and panelized building systems

• Timber-to-steel and timber-to-concrete interface connections

• Exterior and interior partition walls

• High-precision on-site assembly where tolerance compensation is required

• Type: WALCO V80 VK Slotted Hole Wall Connector

• Load Capacity (F₂,Rk): 5.9 kN (insertion direction, C24 timber, per ETA-10/0189 using original KNAPP SK screws)

• Material: Hot-dip galvanized steel bracket; steel collar bolt with countersunk screw

• Adjustment Range:

  • Height: ±15 mm

  • Width: ±2 mm

• Minimum Timber Width: 80 mm

• Installation Orientation: Concealed installation; no recess required for 13 mm or 15 mm sheathing thickness (shim washers may be used if needed)

• Compatible Building Materials:

  • Solid timber

  • Engineered wood (CLT, LVL, glulam)

  • Steel

  • Concrete

• ETA Notes: All characteristic values apply only when using original KNAPP screws per ETA-10/0189.

• Mount the Collar Bolt (VK Screw):

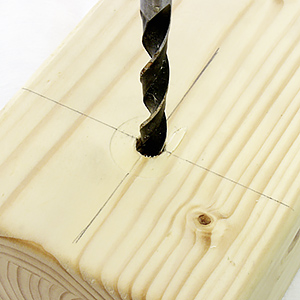

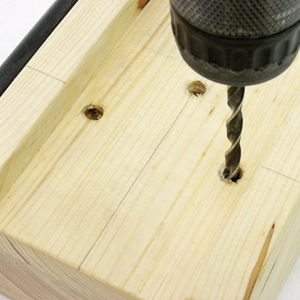

  • Pre-drill the timber element as required.

  • Drive the VK collar bolt and countersunk screw into the wall stud or CLT panel.

• Prepare the Bracket Location:

  • Fix the V80 slotted-hole bracket with two approved screws.

  • If installed over sheathing, shim or recess according to 13 mm or 15 mm thickness requirements.

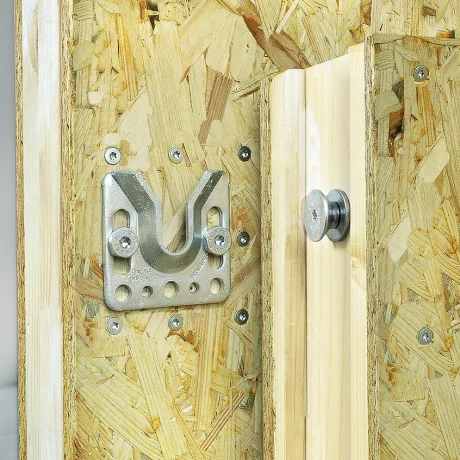

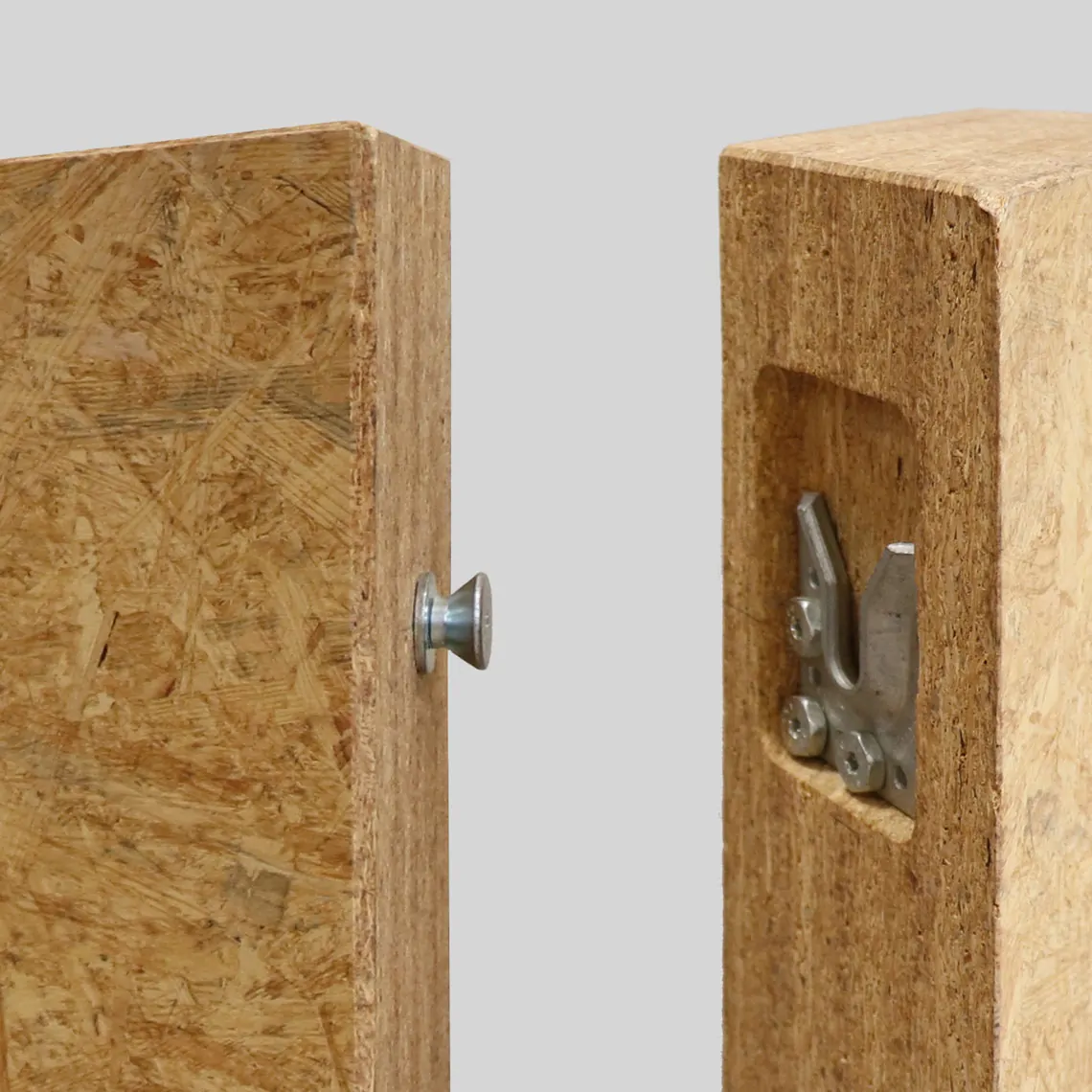

• Engage the Connection:

  • Align the collar bolt with the V-shaped bracket.

  • Slide the wall element into place; the bracket guides the bolt during engagement.

• Adjust for Tolerances:

  • Use the slotted holes to correct height and width (±15 mm / ±2 mm).

• Final Alignment:

  • Confirm tight seating and verify gap spacing for seals or gaskets.

  • No additional fastening is required after engagement.
