WALCO Z40 Wall Connector

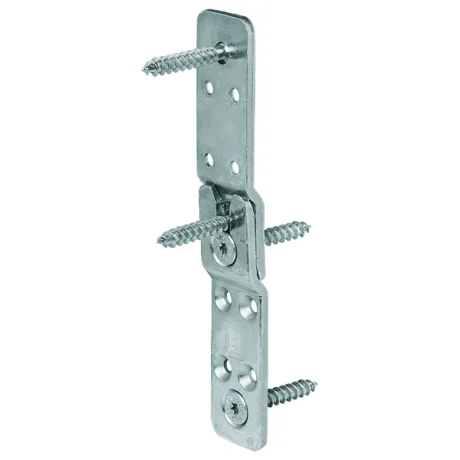

The WALCO Z40 Wall Connector is a visible structural connector designed for joining timber frame walls, CLT panels, and solid timber elements. The system consists of two identical steel connector plates installed on opposing wall elements. When the panels are brought together, the plates interlock along their guide slopes, creating a stable mechanical connection that is immediately load bearing.

The connector requires only minimal milling on one side and uses large SK screws with an integrated drill point to ensure fast and reliable installation in solid or engineered wood.

Key Features

• Visible connector for timber frame and CLT wall joints

• Two identical plates interlock using precision guide slopes

• Only one milling operation required

• Quick assembly with SK screws that feature integrated drill points

• Reinforced screw shank provides strong mechanical load transfer

• Stable connection from the first wall corner

• Suitable for prefabricated timber walls and on-site assembly

• ETA compliant when used with original SK screws

• Timber frame walls (2×4, 2×6, 2×8)

• CLT wall-to-wall connections

• Solid timber and engineered wood walls

• Modular and panelized construction

• Light commercial and residential timber structures

• Type: WALCO Z40 Wall Connector

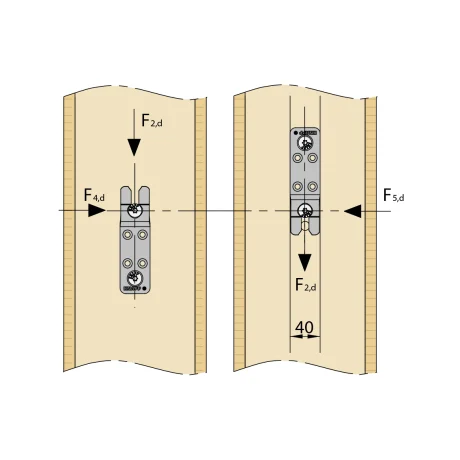

• Load Capacity (F2,Rk): 10.8 kN (insertion direction, per ETA-10/0189)

• Set Contents:

  • 2 pcs. WALCO Z40 connector plates

  • 4 pcs. SK screws 10 x 60 mm

• Material: High-strength steel

• Milling Requirement:

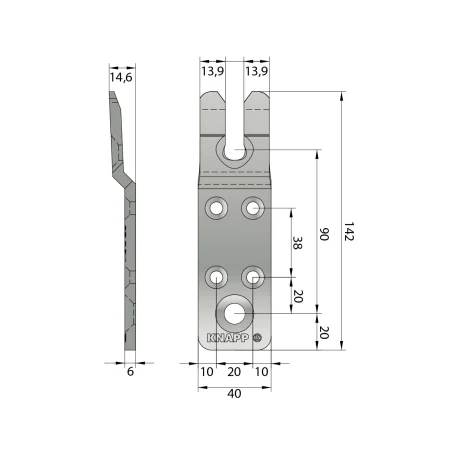

  • 40 mm width

  • 15 mm depth

  • Depth may be reduced by the thickness of joint tape when used

• Minimum Timber Width: 60 mm

• Installation Mode: Visible connector with interlocking plates

• ETA Compliance: Values apply only when original KNAPP SK screws are used

• Mill the Receiver Side

  • Mill 40 mm wide × 15 mm deep (reduce depth by joint tape thickness if applied).

• Pre-Drill

  • Use the WALCO template and pre-drill with a 6 mm drill bit.

• Mount the First Plate

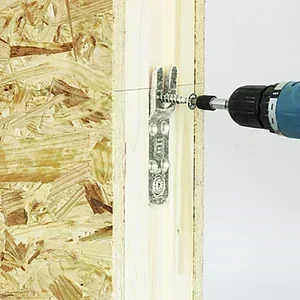

  • Install using two SK 10 x 60 mm screws.

• Mount the Opposing Plate

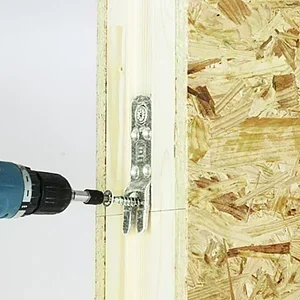

  • Install the second plate in mirrored orientation on the adjoining wall.

• Engage the Connection

  • Bring the wall elements together with a vertical offset of roughly 70 mm.

  • Slide the elements downward until the plates fully engage.

• Verify the Joint

  • Ensure the plates are fully seated and the wall faces are aligned.
