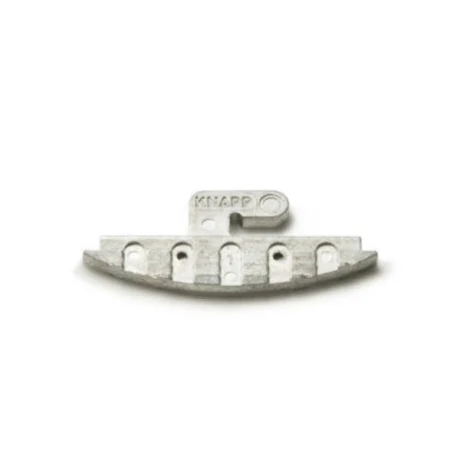

KOMBI Hook Connector

The KOMBI Hook Connector is a concealed hanging connector made of aluminum-zinc die-cast, designed to attach wooden panels to either the KOMBI Mounting Bracket or a perforated wall rail. This biscuit-style hook sits in a standard #10 biscuit slot and can be screwed in with the included PH screws or glued in with KNAPP PU+ Adhesive. Once installed, panels simply hook on and lift off — no tools needed to mount or remove.

The KOMBI system is purpose-built for wall cladding, decorative panels, and exhibition construction where components need to be hung concealed and changed out repeatedly. Unlike standard biscuit connectors that join two panels edge-to-edge, the KOMBI creates a vertical hook-on connection — one part hangs from the other, secured by gravity and the hook profile.

Features and Benefits

• Concealed connection — completely invisible from the outside
• Unlimited demount/remount cycles — hang on, lift off, rehang at any time
• Non-corrosive aluminum-zinc die-cast construction
• Installs in a standard #10 biscuit slot using any biscuit joiner
• Can be screwed in or glued in depending on the application
• Screws available separately, or included in the KOMBI Hook Connector Set (K614-SET)
• Works with perforated rails or the KOMBI Mounting Bracket for flexible mounting options

• Wall cladding and decorative paneling
• Exhibition and trade show construction
• Shopfitting and retail displays
• Facade paneling (interior and protected exterior)
• Architectural millwork and feature walls
• Closets and case goods

• Material: Aluminum-zinc die-cast
• Coating: None
• Connector Type: Hanging connector (hook-in biscuit)
• Biscuit Slot: #10
• Mounting: Screw-in with PH screws Ø 3 × 25 mm or glue with KNAPP PU+ Adhesive
• Installation: Cut a #10 slot with a biscuit joiner at 10 mm depth setting, insert connector, and screw or glue in place
• Suitable Materials: All wood, board materials, and plastics
• Advantages: Concealed, non-corrosive, demountable hanging connector
• Included: 1 pc. KOMBI Hook Connector — screws sold separately

Steps

1. Set your biscuit joiner to cut a #10 slot at 10 mm depth.
2. Cut biscuit slots in the back face of the panel at the desired mounting positions.
3. Insert the KOMBI Hook Connector into each slot.
4. Secure by screwing in with the included PH screws (3 × 25 mm) or glue with KNAPP PU+ Adhesive.
5. Mount the KOMBI Mounting Bracket to the wall or substrate, or install a perforated rail system.
6. Hang the panel by hooking it onto the bracket or rail.

Tips

• The KOMBI Hook Connector pairs with the KOMBI Mounting Bracket (K615) for fixed-position wall mounting, or hooks directly onto perforated rails for adjustable positioning.
• For a complete kit in one purchase, order the KOMBI Hook Connector Set (K614-SET).
• Screwing the connector in allows future removal; gluing creates a permanent bond.
