QUICK-SET is a simple and efficient 2-part Dowel. With its glue-less design, the threaded stud and plastic sleeve firmly lock into place. RTA cabinets and closet systems are put together on or off-site quickly and easily. QUICK-SET is processed the same as a conventional wooden dowel – but in a much shorter time, as gluing and clamping is not a factor. In addition to its main area of application as a modern cabinet connector, the QUICK-SET can also be used for drawer boxes, shelving, and bookcases.
QUICK-SET 2-Part Locking Dowel for RTA cabinets!
Turn on the sound in the right hand corner of the video!
QUICK-SET | 2-Part Locking Dowel Connector

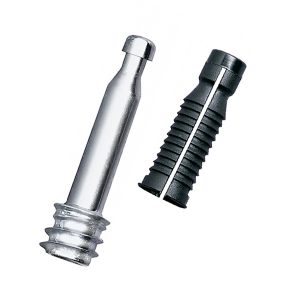

QUICK-SET is a simple and efficient 2-part Locking Dowel, that includes a threaded stud and a plastic sleeve. The QUICK-SET is self-tightening, non-visible, and can be inserted immediately into standard boreholes without waiting for glue to dry. With 4 sizes available, you will be sure to find the perfect size you need for your application.
QUICK-SET comes in ∅ 5 mm x 7.5 mm, ∅ 5 mm x 11 mm, ∅ 8 mm x 8 mm, and ∅ 8 mm x 26 mm. The plastic sleeve remains ∅ 8 mm for all versions and can be processed on flat surfaces with a material thickness of 5/8 (16 mm) or more. With 4 sizes available you will be sure to find the perfect diameter and length you need for your application.
Available in 4 sizes
∅ 5 mm x 7.5 mm
∅ 5 mm x 11 mm
∅ 8 mm x 8 mm
∅ 8 mm x 26 mm
Strong Design. The metal stud gives an advantage over the average wood dowel. Shear strength is extremely high, giving you the assurance that the metal stud would never break before the wood. The coarse threads add to the pull out strength, giving you between 132 – 187 lbs of pull out strength, depending on the material used.
High Pull Out Strength
132 lbs for 3/4″ inch particleboard
161 lbs for 3/4″ inch MDF (medium-density fiberboard)
161 lbs for 5/8″ inch spruce plywood
187 lbs for 5/8″ inch beech plywood
Installation is a breeze. Once the dowel holes are drilled and the metal stud is screwed in, the only tool you will need is a rubber mallet. The metal stud forces itself into the plastic sleeve. Once in reaches the end, the head of the stud snaps into the sleeve, locking it firmly into place.
RTA Cabinets in minutes
No glue needed
Installation in minutes
Locks into place
Snap together with a rubber mallet
SAMPLE PACKS, STARTER KITS AND MORE!
Get a Sample Pack on us!
Test out each different size! Just pay shipping and handling!
Our goal is to provide you with the tools you need to make an effortless transition when using our versatile connecting systems. Feel free to reach out if you have any questions about our Cabinet Vision Packages. If you are looking for other resources that you do not see here, please contact us. We have a knowledgeable team that is eager to help you with all of your needs. You can also reach us directly at 1-877-888-7773. We look forward to hearing from you!
