Furniture Frame Connectors

DUO System Frame Connectors

Dovetail Frame Connector | Steel

The DUO-System is a furniture connector that provides the optical qualities of traditional frame joints, while being engineered in an innovative manner for fast processing and even simple for the end user to assemble. As an example, the DUO 100/15 is an ideal frame connector for bed rails, while the DUO 62/15 and DUO 90/20 are great sizes for table aprons. The larger sizes such as the DUO 62/30 and the 90/46 are used to attach sofas, sectionals, and larger joints. Like all KNAPP connectors, they are non-visible, self-tightening and can be disassembled. The assembly of knock-down frames such as bed rails and heavy furniture becomes simple. The pan-head screw can be simply adjusted in or out, making installation a breeze. The DUO-System provides the perfect finished look with no visible fastener parts.

  • Duo System Wood Frame Connectors
    Select options Details


ZIPBOLT 90 KD

Frame Connector | Worm Drive for Fast Assembly



The ZIPBOLT™️ Connector is a practical and innovative furniture frame connecting solution. The ZIPBOLT™️ completely eliminates the difficult and time-consuming use of a screwdriver needed for conventional connectors and fasteners. ZIPBOLT™️ requires no additional tightening while the parts are connected. While tensioning tools often cause damage and a considerable amount of extra work, this is not the case when using the ZIPBOLT™️. The fastener connects and holds the components in position, while disassembly is simple and possible at any time.

The connector consists of a threaded rod, which has a metric fine thread and ensures an optimal force transmission – combined with an internal force-transmitting gear drive. The mounting of the connector is very fast; it is easy to install with a cordless drill or even a hand-held screwdriver. With these tools, the processor can quickly tighten the components together. Because of this, one-hand mounting is also possible. Countertops and frames from 5/8″ (16 mm) to 1-1/2″ (38 mm) board thickness can be connected in just a few seconds.

  • Zipbolt Countertop and Joint Connector
    Select options Details


Mod-eez System

Clip Connector | Spring Steel

Mod-eez®️ System is a comprehensive furniture connector that is specifically designed with RTA and knock-down furniture in mind, such as bookcases, nightstands, and end tables. This innovative system was developed to tighten joints securely together in a fast and simple method with no visibility of the connector. Mod-eez®️ uses a spring steel declining ramp “clip” and a large collared shoulder screw at the two mating members.

Mod-eez®️ Double Clips are used in combination with 2 Shoulder Screws and used for wider dimension board material. They are anti-rotating and can be attached in all wood materials, including metal. Mod-eez®️ clips are made for material as little as 5/8″ in thickness and are ideal for table aprons, stools, bookcases, and any material greater than 3″ in width. Spring steel clips make the joint strong, yet flexible, while the collar on the shoulder screw adds tremendous resistance to torsional pull-out. Simply slide the shoulder screw head down the ramp of the clips and all fasteners disappear.

  • Mod-eez Cabinet Fasteners

    Mod-eez®️ System Sets

    $52.25$1,228.00
    Select options Details

Mod-eez®️ Anti-Rotation Connectors

Male and Female Clip Connector | Spring Steel

Mod-eez®️ Anti-Rotation clips work especially well to connect furniture components, such as a table aprons and chair stretchers as little as 2″ in width. The Mod-eez®️ anti-rotation clips are only .390″ wide, making them perfect for 1/2″+ thick material. Spring steel makes the joint strong, yet flexible, and with the clip located in its pocket and the system assembled, all fasteners disappear.

Mod-eez®️ Anti-Rotation clips are highly used for furniture with narrow rails and stiles such as end tables, night stands, bookcases, knock-down, and RTA furniture, as there is no rotation once the components are connected.

  • Mod-eez Anti-Rotation Clip Connectors
    Select options Details


RICON Stainless Steel

Outdoor Frame Connector | Stainless Screws Included



The RICON® Stainless Steel series is a one of a kind stainless steel, slide-in heavy furniture fastener. It is completely concealed and allows for simple and fast joining of rails and beams. Not only can it be used indoors, but also for outdoors, giving you a wide variety of applications such as patio furniture, garden benches, pergolas and outdoor tables.

The RICON® Stainless Steel consists of two identical metal connector plates that hook into each other in a dovetail-like manner. Typically, one of the plates sits in a recess and the other is screwed on the face of the beam or rail. For easy installation, KNAPP® also offers Routing Jigs as well as a Mounting kit. With 10 different sizes to choose from, the RICON® Stainless Steel provides solutions for all of your furniture fastener needs.

  • RICON Stainless Steel Timber Frame Connectors

    RICON® Stainless Steel

    $65.26$1,069.25
    Select options Details


Furniture Dowels

KNAPP® Dowel

Plastic Dowel for Furniture



The KNAPP®-Dowel is a strong and durable plastic dowel connector available in 6×28 mm and 8×36 mm. We make our dowels out of the best high-strength weather-resistant (POM) plastic, which gives extra durability in outdoor weather conditions. The threaded ribs are designed to tightly grip into the borehole, hence, no clamping is necessary. Unlike conventional wooden dowels, the KNAPP®️ Dowel can be used with or without adhesive.

If used with the recommended KNAPP®-Adhesive PU+ (Z011/1) the lengthwise grooves and two holes ensure an optimal distribution of the glue and a firm anchoring in the material, thus creating a strong and tight connection between the components when hardened. Processing can be done in as little as 7-10 minutes after insertion when using KNAPP-Adhesive PU+.

  • KNAPP®-Dowel self-tightening plastic dowel KNAPP-Dowel 8x50
    Select options Details


QUICK-SET Dowel

2-Part Locking Dowel | No Glue Needed



The QUICK-SET furniture fastener is a simple and efficient 2-part Locking Dowel connector including a threaded stud and a plastic sleeve. It is a self-tightening, non-visible, RTA furniture fastener and can be inserted immediately into standard boreholes without the need for glue. End tables and coffee tables can be put together on-site quickly and easily, thus high transport costs are omitted.

The processing of the two-piece connector is the same as with a conventional dowel but in a much shorter time, as glue drying time is not a factor. In addition to its main area of application as a modern cabinet connector, the QUICK-SET can also be used for dresser drawer boxes, bedroom shelving, bookcases and more.

  • QUICK-SET 2-Part Locking Dowel Connector QUICK-SET 2 Part Locking Dowel
    Select options Details


TUCK Dowel

Compression Dowel | Spring Steel



The TUCK is a spring steel compression dowel for attaching components without glue or clamps that is immediately load-bearing. TUCK is available in five sizes. The 6 x 25 mm, 8 x 35 mm and 10 x 32 mm dowels are processed like conventional wooden dowels. The 10 x 28 mm and 10 x 16 mm are screwed onto a component, while the other end is inserted into a borehole.

The spring steel design guarantees permanent tightening by pushing against the borehole wall. The processing can be done with a dowel-boring machine or CNC. Due to eliminating usual clamping aids, the productivity of the gluing of workpieces (furniture parts such as chair stretchers) can also be drastically increased even in smaller manufacturers.

  • Select options Details


MILLER Dowel Joinery System

Stepped Dowel | 4 Wood Species Available



MILLER Dowel is a stepped, solid-wood structural fastener that forms tight joints all the way through. This traditional joinery system is highly used for projects such as end tables, coffee tables, night stands, toy chests, and more.

Why is it stepped? Simple. Ease of insertion. The Miller Dowel can be inserted 3/4 of the way in before you have to hammer it in. The first section acts like a clamp that securely holds the first piece to the second. The second section gives the joint shear strength. The remaining sections bond with the anchor pieces to form a secure joint. The sections are not tapered, which means that the glue surface remains intact through the entire length of the dowel engaging with the wood.

Inserting the dowel from the outside in makes installation a breeze. Alignment and drilling is done all in one step. With a number of wood species to choose from, you will be building beautiful traditional furniture with minimal effort.

  • Out of stock
    Miller Dowel Joinery System Stool 1x Birch Miller Dowel 100 pcs
    Details


Table Leg Connectors

easy-con®

Table Leg Connector | Demountable

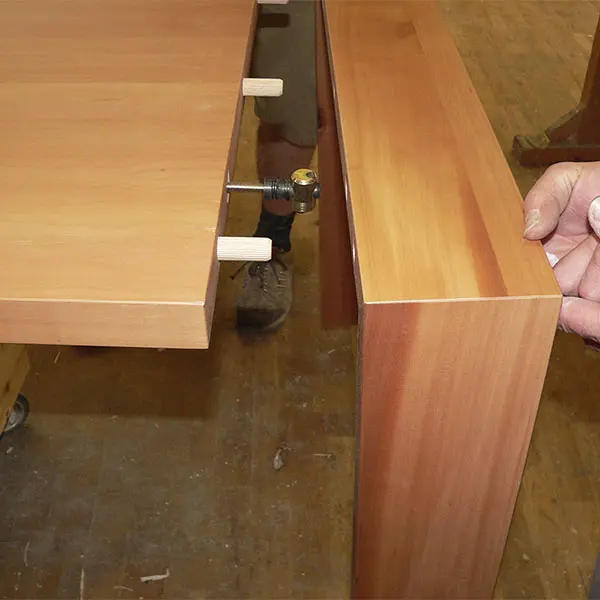

The easy-con® is a universal and non-visible furniture connector for mounting table legs to the table top. Because of how sturdy the connection is, the easy-con® offers the safety of high quality standards according to (EU) building code (Z-50.4-325). The connector can be disassembled and easily re-tightened at any time, making it perfect for knock-down furniture. Easy-con® can be used in all wood materials and provides a high degree of pre-manufacturing.

  • Select options Details

Still looking for a solution?

We hope you have found some practical and innovative furniture connecting solutions. If you’re still looking for a solution that you have not yet seen, we are here to help! In this industry, we are always inventing and continuously learning to improve and meet the needs of our customers. We will be glad to help you find a connecting solution. Please, fill out the form below so we can help you on your next woodworking project.

Tell us what type of furniture connector you’re looking for!

Fill out my online form

Not from North America? Follow the link to view our connectors for connecting systems for furniture on our European website!

With over 30 years of experience inventing connecting solutions for woodworkers, KNAPP® is proud to say, “we supply the world”. While our main headquarters is located in Austria, KNAPP® has been supplying connectors to the United States and Canada for over 20 years. As the demand for invisible connecting solutions grew, we replied by establishing our roots here in the U.S. back in 2017 to better serve the needs of our fellow woodworkers. Our KNAPPconnectors.com online store is pleased to serve North, South, and Central America. If you live outside of this area or if you live in Europe, please visit knapp-verbinder.com or email info@knapp-verbinder.com to be connected with the right representative.
