Mod-eez Shoulder Sex-bolts

$22.75$630.00

The Mod-eez®️ Sex Shoulder bolts have been specially designed to attach components using the Mod-eez Single Clip and Double Clip Connectors on the exact same position on the other side of the a cabinet or closet middle/divider wall board. The Shoulder Sex-bolts are installed via a through-hole on the divider/wall panel and thus allowing components such as stretchers or fixed shelves to be installed at the exact same level without having to go through the trouble of having to offset your hardware in any way.

Description

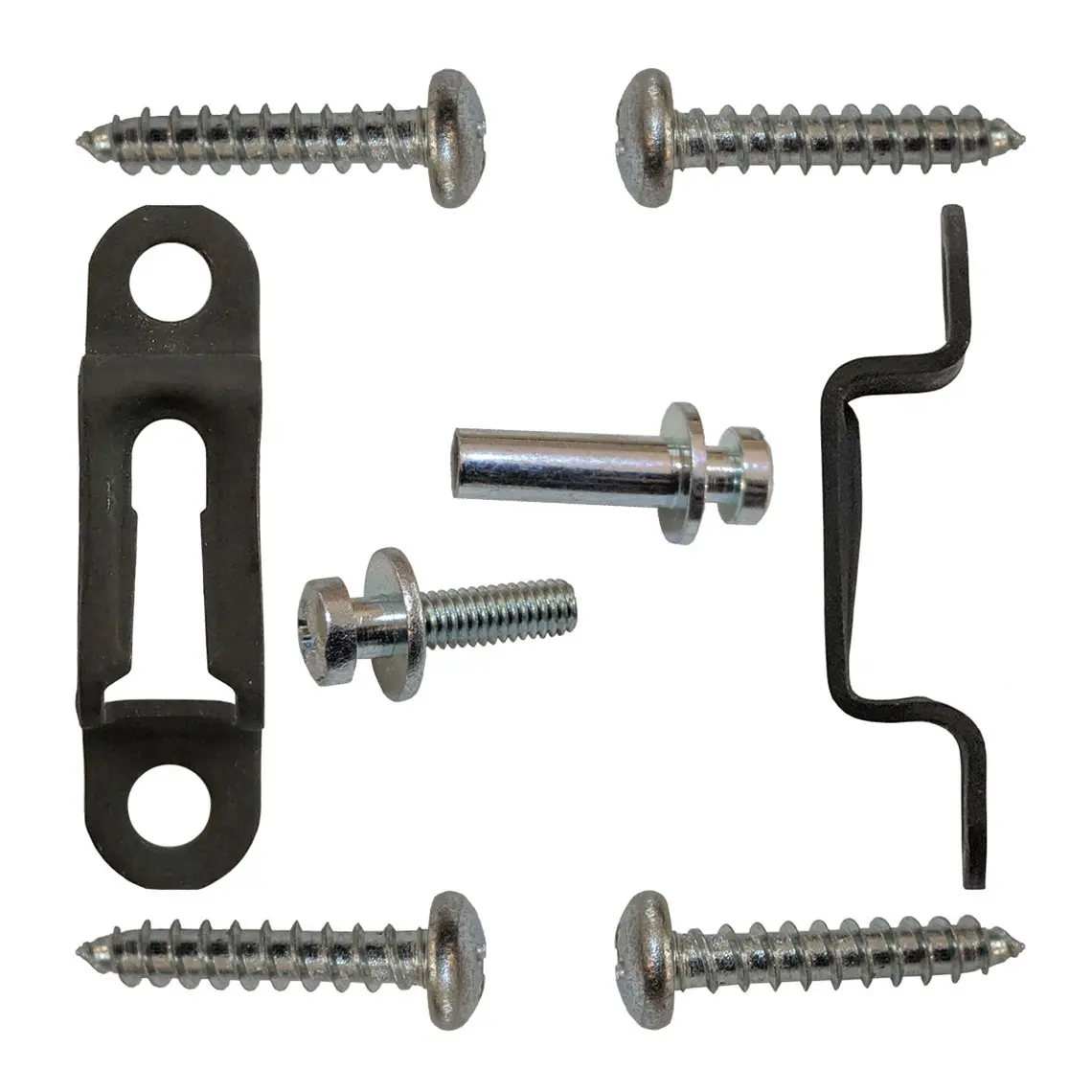

Mod-eez®️ Shoulder Screws have been specifically designed to attach components using the Mod-eez Single Clip and Double Clip Connectors. The Mod-eez®️ system was developed to join panels securely together in a fast and simple method with no visibility of the connector. The Mod-eez®️ Fastening System meets the objective by utilizing a spring steel declining ramp “clip” and a large collared Shoulder Screw at the two mating members. Spring steel makes the joint strong, yet flexible, while the collar on the Shoulder Screw adds tremendous resistance to torsional pull-out. Assembly occurs by simply sliding the Shoulder Screw head down the clips ramp. With the clip located in its pocket, and the system assembled, all fasteners disappear.

Mod-eez®️ Shoulder Screws are a #14 Surface Mount (SMT) screw and are made for a 5 mm pre-drilled hole making them suitable to be used in place of shelf pins in case goods and cabinetry. Shoulder Head Screws are available in 3/8″(#2053), 1/2″(#2055), and 5/8″(#2155) lengths and can be used in all wood materials as little as 5/8″.

Mod-eez®️ Shoulder Bolts come in M4 x 12.0 mm (#2065) and M4 x 15.0 mm (#2069). A Should Head Sleeve (#2066) that fits through a 5 mm hole and attaches to the M4 Shoulder Bolt. These two mating members are necessary when shoulder screws must be placed on the exact opposite sides of a panel without having the screws collide.

Application

Case Goods, Cabinets and Furniture

Installation

(View and Download Instruction Manual)
